Remove rearview mirror support

die ersten Sprinter (T1N)
Antworten
Benutzeravatar
ooznak
Beiträge: 34
Registriert: 07.12.2018 16:48
Wohnort: Spain

Remove rearview mirror support

Beitrag von ooznak » 11.03.2021 20:04

hello, how can I remove the support for the rear view mirror? I have rain sensor .
I have searched information but i have found nothing


thankyou in advance
James Cook 316 CDI , 2006

Benutzeravatar
Netsrac
Beiträge: 468
Registriert: 19.02.2018 09:55
Wohnort: 22926 Ahrensburg

Re: Remove rearview mirror support

Beitrag von Netsrac » 11.03.2021 22:44

Hi,

there is a clip glued on the glas on which the mirror socket is mounted with a bajonett-lock. You have to turn it to remove it, but currently I don’t know the direction.
Be careful - having too much energy you can damage the window.

Carsten
T1N 316 CDI Automatic, silber, EZ '05 - verkauft in 2022 :roll:

Benutzeravatar
ooznak
Beiträge: 34
Registriert: 07.12.2018 16:48
Wohnort: Spain

Re: Remove rearview mirror support

Beitrag von ooznak » 19.03.2021 19:43

thankyou for your answer!

I finally guessed the procedure. You have to separate the two plastic parts by the middle (with the hand, it is easy) , and then pull down the support piece. It has a metallic clip that holds it to the part glued on the glass.

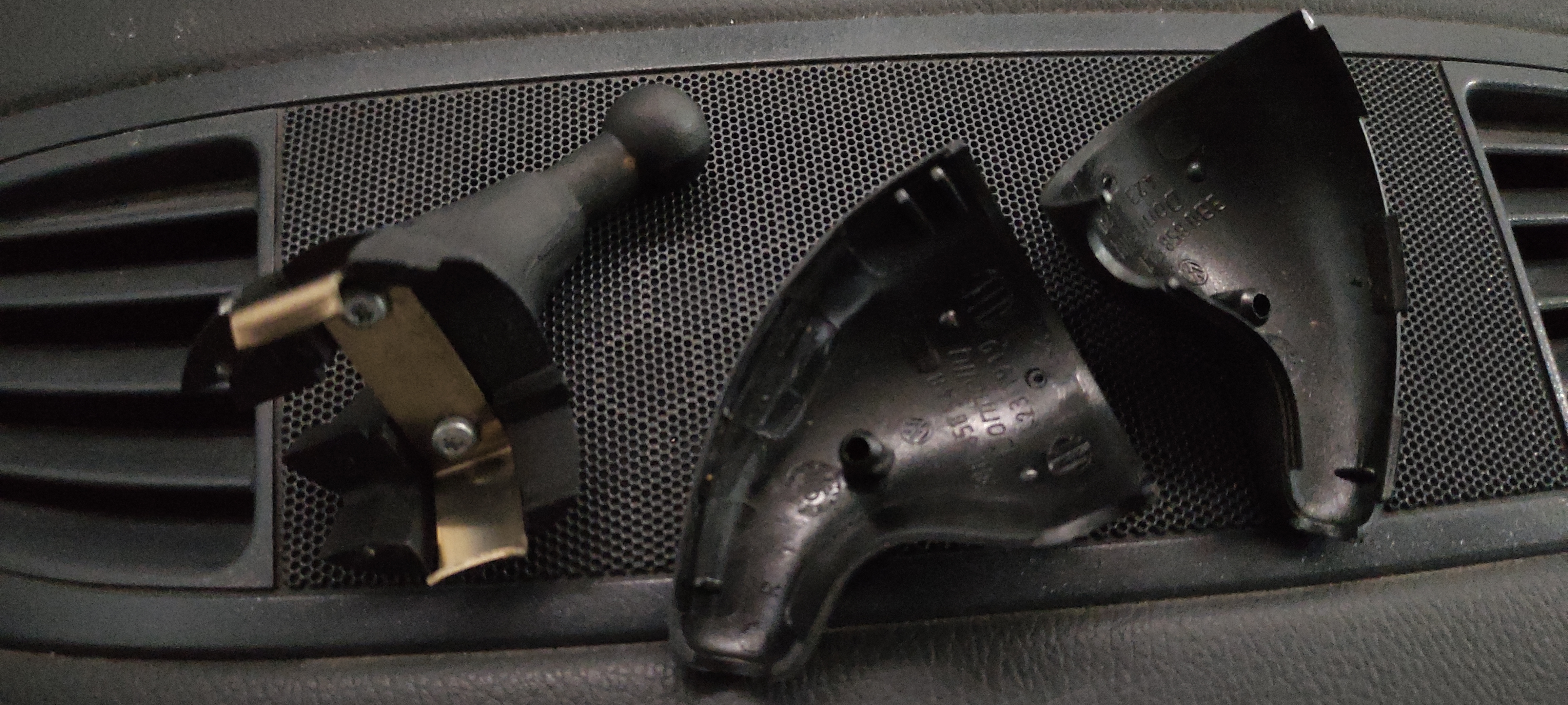

I attach a photo with the 3 parts.


best regards
Dateianhänge
Rear view mirror support
Rear view mirror support
James Cook 316 CDI , 2006
