Hi all,

There is a problem with the fridge of my 2008 James Cook. I believe that I need to remove the panel behind the back seat to access the refrigerator.
Does anyone have instructions how to remove this panel? I removed the screws and the cover for the fuse box and aux batteries, but the panel seems to be too firmly attached. I don't want to damage it!

Thanks!

--
José

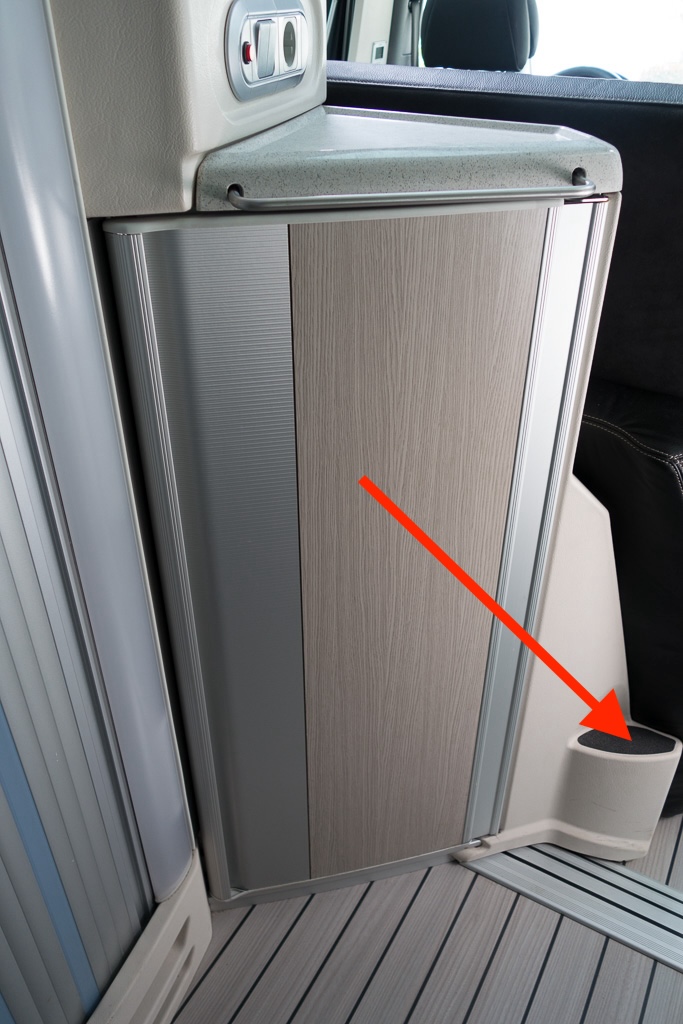

There is a screw under this black thing. Peel this off and remove the screw

Thank you so much for the quick reply!

As a first approach I would suggest to start with the panel next to the battery-compartment. The big panel behind the seat opens access to the back of the fridge and its electrical connections.

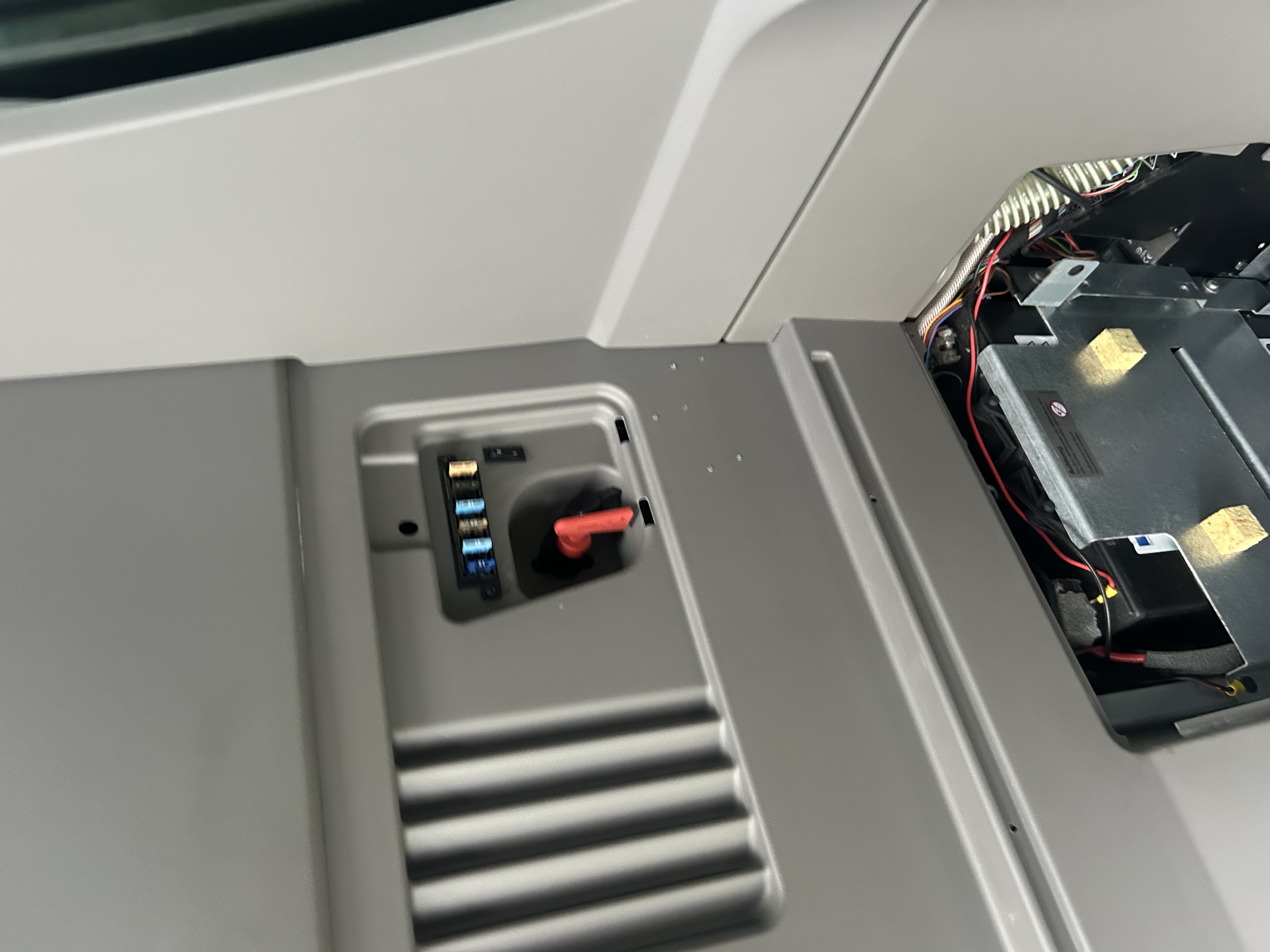

I was able to remove the cover for the batteries. I removed the two screws under the foot step and the screws holding the big pannel.
Should I try and remove first the big part where the foot step is before I can remove the back pannel? They seem to be glued together.
I am also not sure If I need to remove the fuse box... Any help is very much appreciated! Thanks!

--
Jose

Hope Im not btoo late.

In my case, there two hidden screws. I found with a magnet than I drilled two hole to unscrew. After the job, I masked the holes with white caps.

I also disconnect the fuse box; If not, there no large space to move the pannel.

The hidden screws are located with the red circles
